MDQNR/L INDEXABLE TURNING TOOL HOLDER #I11

indexable iso Type lathe turning tool holder MDQNR/L MDQNR MDQNL 16mm 20mm 25mm 32mm 40mm shank size for Carbide Insert
  • indexable iso Type lathe turning tool holder MDQNR/L MDQNR MDQNL 16mm 20mm 25mm 32mm 40mm shank size for Carbide Insert
Price:
US$27.50
SKU:
I11
Brand:
Shipping:
Calculated at checkout
Quantity:

Product Description



...

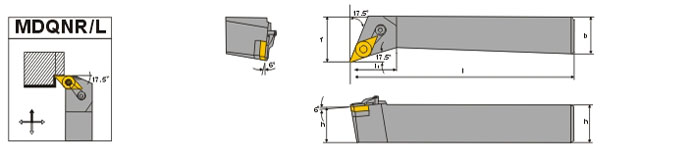

  MDQNR/L EXTERNAL LATHE TOOL HOLDER
...



M Type with Top & Side Wedge Clamping System For ISO Type DN Inserts - Shank Sizes 16mm to 32mm




Model No.
Insert
Size (mm)
Shim
Shim Screw
Clamp
Clamp Screw
Wrench
h
b
l

f
MDQNR/L1616H11
DN..1104..
16
16
100
20
MD1103
MX0513
MY0619
ML0625
L2,L3
MDQNR/L2020K11
20
20
125
25
MDQNR/L2525M11
25
25
150
32
MDQNR/L2020K15
DN..1504..
DN..1506..
20
20
125
25
MD1506
MD1504
MX0619
MY0621
ML0625
L2.5,L3
MDQNR/L2525M15
25
25
150
32
MDQNR/L3232P15
32
32
170
40



ITEM(S)

  • 1 pc. Tool Holder
  • 1 pc. Shim for Insert
  • 1 pc. Screw for Insert
  • 1 pc. Clamp
  • 1 pc. Clamp Screw
  • Torx Wrench(es)



SPECIFICATION

  • Turning Tool Holder with Multi-Lock Top and Side Wedge Clamping System
  • Made of forged Alloy Steel
  • Hardened to HRC45
  • Corrosion resistant Black Oxide Finish
