Self-Calibrating To Horisontal Plane - For Levelling Machine Installations And Other Measuring Tasks

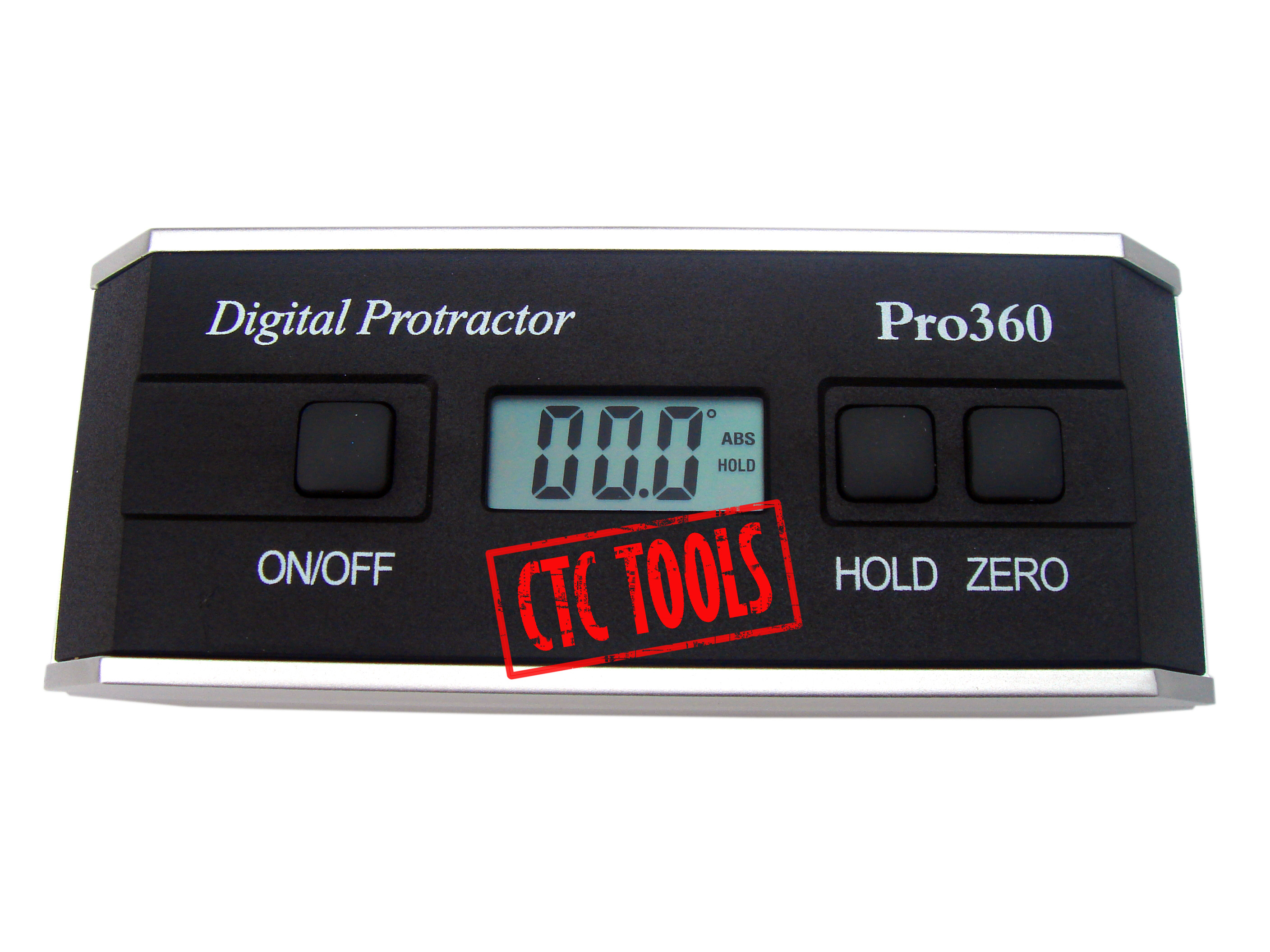

DIGITAL LEVEL / PROTRACTOR
ITEM(S) 1 Pc. Digital Level / Angle Finder Incl. Carry Pouch For Protection And User Manual
APPLICATION(S) This Tool Has A wide Job Range In A Workshop. It Is Self-Calibrating To The The Horisontal Plane And Is Useful For Initial Levelling Of Machine Installations, Set-Up Of Machine Tools As Well As In Almost Any Project Where Something Is Built Or Installed.
SPECIFICATION - Angle Readout From Standard Reference Plane At 0.0° (Absolute True Level) To Actual Inclination Of The Protractor
- 'ZERO' Button for Setting Of Alternate Reference Plane To Take Relative Angle Measurements
- 'HOLD' Button To Freeze Reading
- Measuring Range: 4 X 90°
- Resolution 0.1°
- Precision +/-0.2°
- Big Display Which If Using Upside Down Will Automatically Rotate So It Always Remains Upright For Easy Reading
- Size LxHxW 150 x 60 x 32mm ( 6" x 2 3/8" x 1 3/8")
- Aluminium Frame With A 'V' Groove On Top And Bottom Surfaces For Measuring On Cylindrical Surfaces
- Simple User Recalibration Procedure
- 3V Lithium Battery Type CR2032 Supplied
- Automatic Shutdown For Power-Save
- Working Temperature: 0?-40? In Relative Humidity: 40% - 80%
PRODUCT PHOTOS
|
Manufacturer:
N/A
|
| SKU: |
H25
|
