SVJCR INDEXABLE TURNING TOOL HOLDER #I43

  • indexable iso standard lathe turning tool holder with screw clamping for Carbide Insert
Price:
US$25.25
SKU:
I43
Brand:
Shipping:
Calculated at checkout
Quantity:


Product Description



...

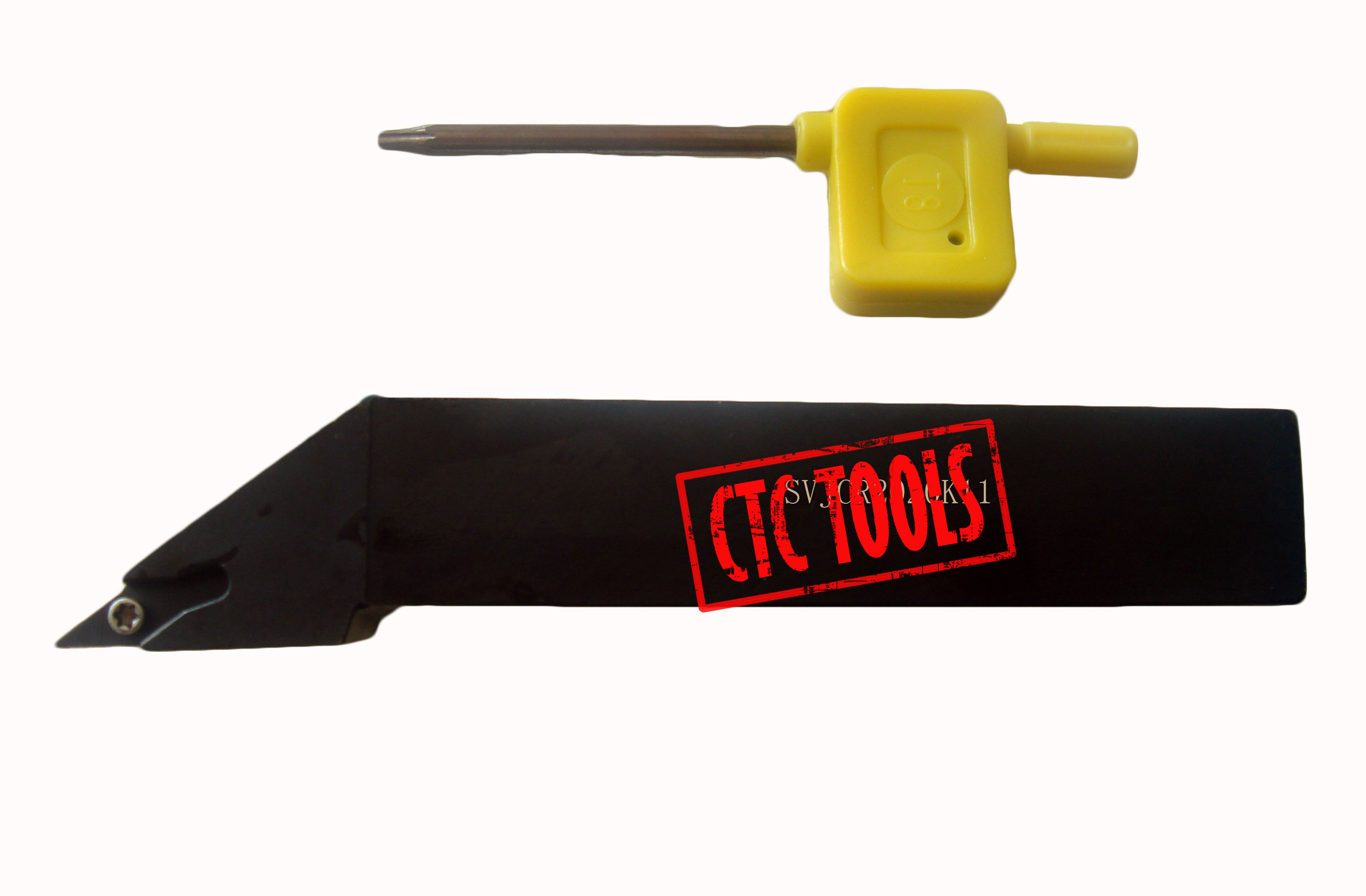

  SVJCR EXTERNAL LATHE TOOL HOLDER
...



S Type with Screw Lock Clamping System For ISO Insert Type VCMT (Medium Cutting) and VCGT (Finishing)
Shank Sizes 16mm to 20mm. Versions are for Right Hand Feed Direction as depictured








Model No.
Insert
Size (mm)
Screw
Wrench
h
b
l

f

SVJCR1616H11
VC..1103..
16
16
100
20
SC250744
T8
SVJCR2020K11
20
20
125
25





ITEM(S)
  • 1 pc. Tool Holder
  • 1 pc. Locking Screw
  • 1 pc. Torx Wrench


  • APPLICATION
  • Approach Angle 93 º
  • Turning
  • Facing
  • Profiling
  • SVCJR toolholders use the two 35º corners of VC__ inserts, mounted at 93 º to the axis of the lathe. Their shape allows the turning of small diameters next to a tailstock centre. They are also useful in profiling


  • SPECIFICATION
  • Screwdown Locking
  • Tool Holder made of High Density Forged Alloy Steel
  • Hardened to HRC40, Ground and Black Oxidated or Silver Coated depending on Size
  • Right Hand Version as depictured
  • Uses VCMT11103_ inserts with 7 º relief angle. Available for medium cutting of steel, stainless steel under our item no.'s J13, J14 and for aluminium and finish cuting of steel (VCGT) under item no. J15

  • Find Similar Products by Category
