STUCR INDEXABLE BORING BAR #I37

  • indexable iso standard lathe turning tool holder stucr boring bar with screw clamping for Carbide Insert
Price:
US$27.50
SKU:
I37
Brand:
Shipping:
Calculated at checkout
Quantity:


Product Description



...

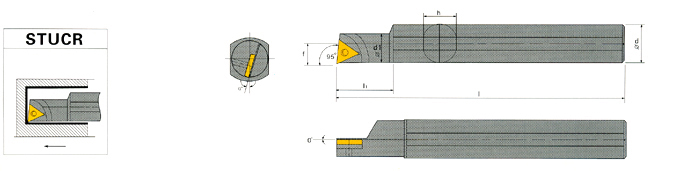

  STUCR BORING BAR
...



S Type with Screw Lock Clamping System For ISO Type TCMT Inserts - Shank Sizes 8mm to 25mm
Versions are for Right Hand Feed Direction as depictured








Model No.
Insert
Size (mm)
Screw
Wrench
Minimum Bore
Φd
f
l
l1
h
S08K-STUCR09
TCMT0902..
Φ11
8
5
125
12
7
10°
SC220556
T-6
S10K-STUCR09
Φ13
10
6
125
15
9
S10K-STUCR11
TCMT1102..

Φ13

10

6

125

15

9

12°

SC250544

T-8
S12M-STUCR11
Φ16

12

7

150

18

11

10°

S16Q-STUCR11

Φ20

16

9

160

24

15

20Q-STUCR16
TCMT16T3..
Φ24

20

11

180

30

18

SC350960

T-15
S25S-STUCR16
Φ31
25
14
200
38
23

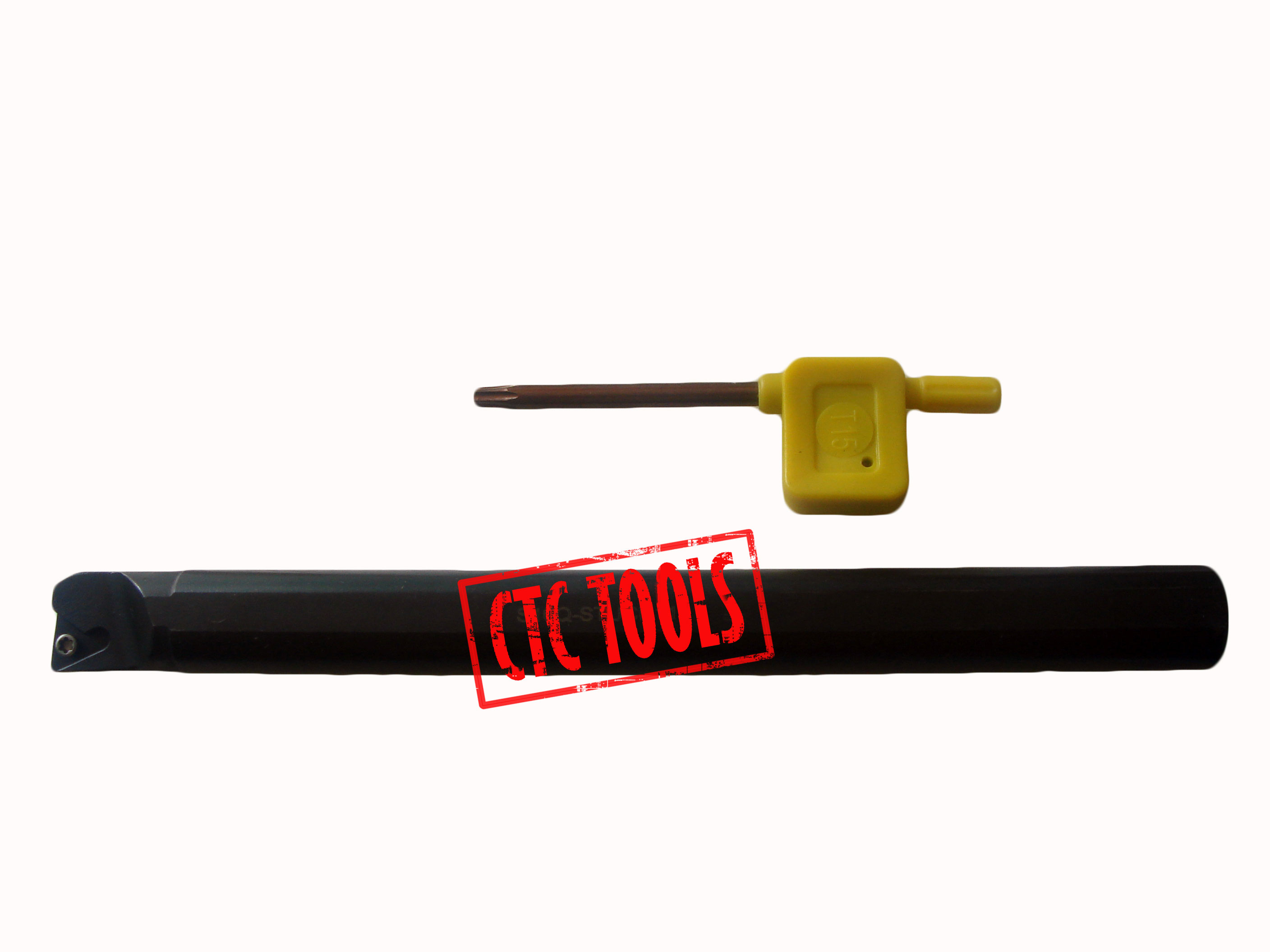

ITEM(S)
  • 1 pc. Boring Bar
  • 1 pc. Locking Screw
  • 1 pc. Torx Wrench


  • APPLICATION
  • Approach Angle 95º
  • Boring
  • STUCR boring bars use the three 60 º corners of positive rake TCMT inserts mounted at 95º to the axis of the lathe. Their shape allows straight boring to a shoulder with small start bores. These boring bars can generally work with overhangs of up to 5 times the boring bar diameter without the tool starting to vibrate
  • Use with TPMT inserts as our Item No.'s K10 and K11


  • SPECIFICATION
  • Screwdown Locking
  • Tool Holder made of High Density Forged Alloy Steel
  • Hardened to HRC40, Ground and Black Oxidated or Silver Coated depending on Size
  • Right Hand Version as depictured
