SVUCR INDEXABLE BORING BAR #I40

  • indexable iso standard lathe turning tool holder svucr boring bar with screw clamping for Carbide Insert
Price:
US$27.50
SKU:
I40
Brand:
Shipping:
Calculated at checkout
Quantity:


Product Description



...
  SVUCR BORING BAR
...



S Type with Screw Lock Clamping System For ISO Type VCMT Inserts - Shank Size 16mm
Tool Holder Version is for Right Hand Feed Direction as depictured








Model No.
Insert
Size (mm)
Screw
Wrench
Minimum Bore
Φd
f
l
l1
h
S16Q-SVUCR11

VC_T1103..
Φ22
16
11.5
160
24
15
10°
SC250744
T-8





ITEM(S)

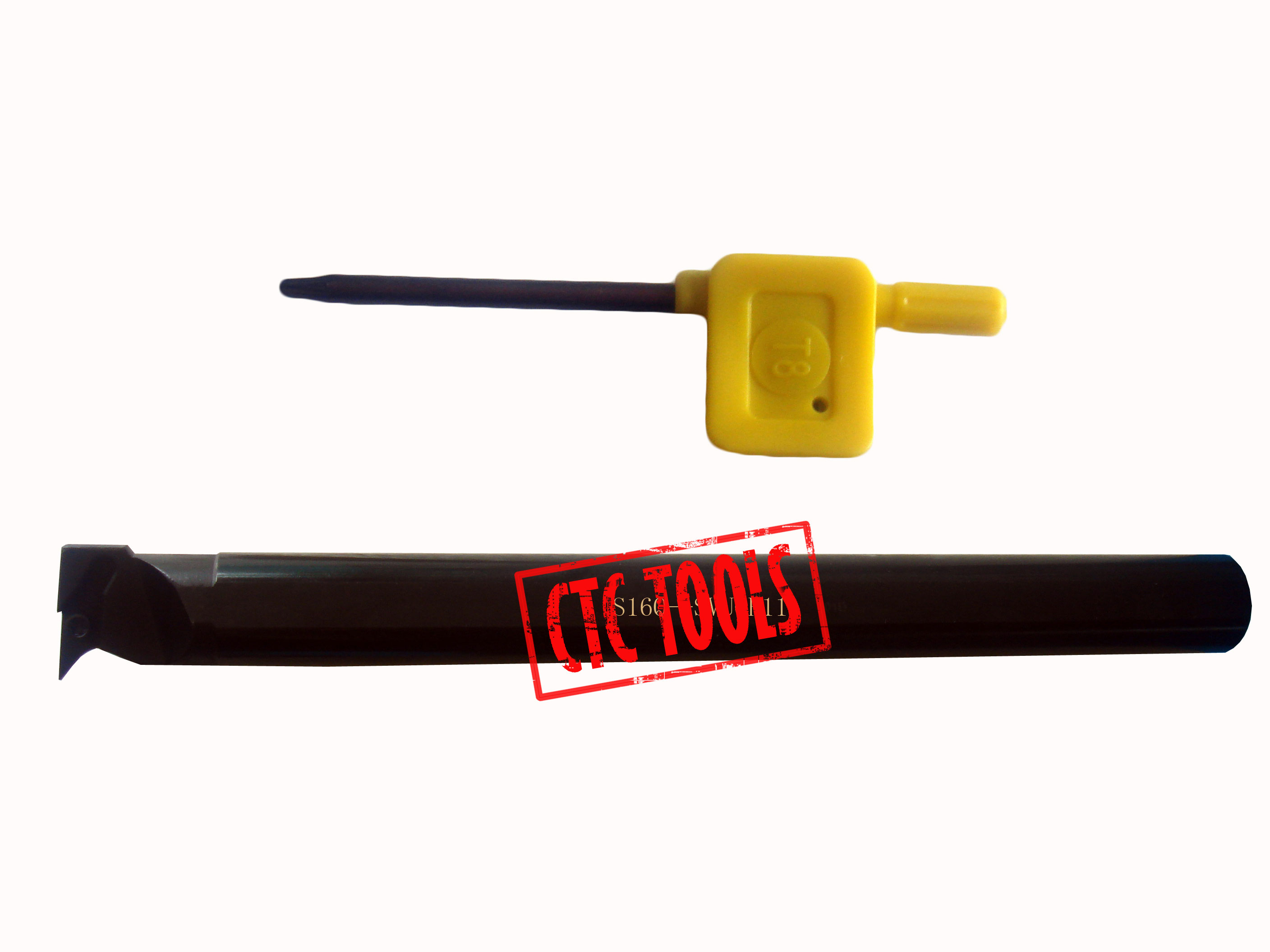

  • 1 pc. Boring Bar
  • 1 pc. Locking Screw
  • 1 pc. Torx Wrench


  • APPLICATION
  • Approach Angle 95º
  • Boring
  • SVUCR boring bars use the two 35º corners of the positive rake VCMT insert mounted at 95º to the axis of the lathe. Their shape allows straight boring to a shoulder and internal profiling. These boring bars can generally work with overhangs of up to 5 times the boring bar diameter without the tool starting to vibrate.
  • Use with VCMT inserts as our item no. J13 and J14 for medium cutting of steel and stainless or J15 (VCGT) for cutting aluminium and finish cutting of steel. The VCMT insert has a relief angle of 7? compared to 5? of the VBMT insert. This tool therefore have a bit more clearance then the SVUBR version.


  • SPECIFICATION
  • Screwdown Locking
  • Tool Holder made of High Density Forged Alloy Steel
  • Hardened to HRC40, Ground and Black Oxidated or Silver Coated depending on Size
  • Right Hand Version as depictured
