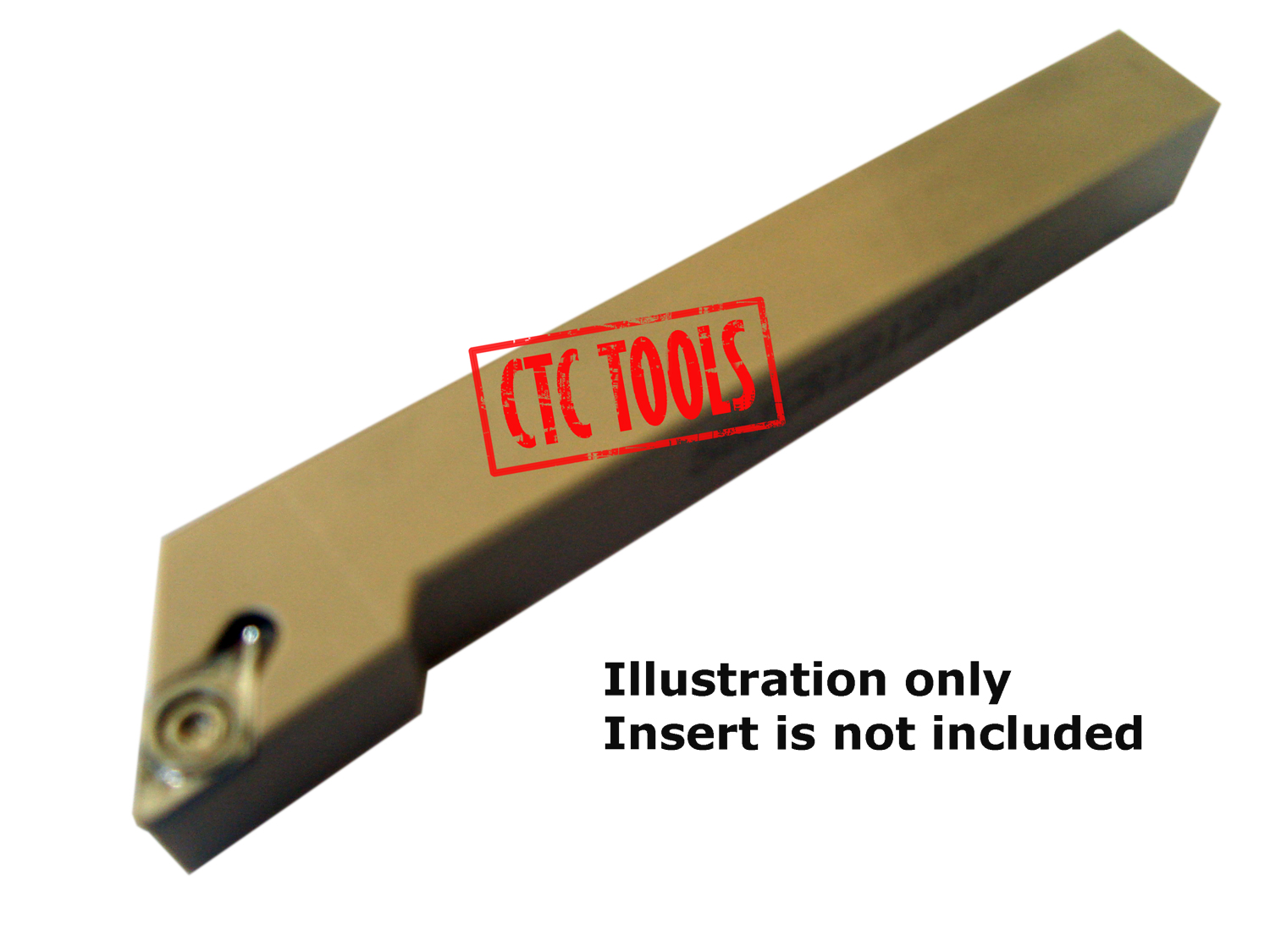

SDJCR/L INDEXABLE TURNING TOOL HOLDER #I30

indexable iso standard lathe turning tool holder with screw clamping for Carbide Insert
  • indexable iso standard lathe turning tool holder with screw clamping for Carbide Insert
Price:
US$21.00
SKU:
I30
Brand:
Shipping:
Calculated at checkout
Quantity:

Product Description



...
  SDJCR/L EXTERNAL LATHE TOOL HOLDER
...



S Type with Screw Lock Clamping System For ISO Type DC Inserts - Shank Sizes 10mm to 40mm





Model No.
Insert
Size (mm)
Screw
Wrench
h
b
l

f
SDJCR/L1010E07
DC..0702
10
10
70
12
SC250744
T8
SDJCR/L1212F07
12
12
80
16
SDJCR/L1616H07
16
16
100
20
SDJCR/L1212F11
DC..11T3..
12
12
80
16
SC350960
T15
SDJCR/L1616H11
16
16
100
20
SDJCR/L2020K11
20
20
125
25
SDJCR/L2525M11
25
25
150
32
SDJCR/L3232P11
32
32
170
40
SDJCR/L4040R11
40
40
200
50





ITEM(S)
  • 1 pc. Tool Holder
  • 1 pc. Locking Screw
  • 1 pc. Torx Wrench


APPLICATION
  • Approach Angle 93º
  • Turning
  • Facing
  • Profiling
  • SDCJR/L toolholders use the two 55º corners of DC__ inserts, mounted at 93º to the axis of the lathe. Their shape allows the turning of small diameters next to a tailstock centre. They are also useful in profiling


SPECIFICATION
  • Screwdown Locking
  • Tool Holder made of High Density Forged Alloy Steel
  • Hardened to HRC40, Ground and Black Oxidated or Silver Coated depending on Size
