SCLCR/L INDEXABLE BORING BAR #I33

  • indexable iso standard lathe turning tool holder with screw clamping for Carbide Insert
Price:
US$27.50
SKU:
I33
Brand:
Shipping:
Calculated at checkout
Quantity:


Product Description



...

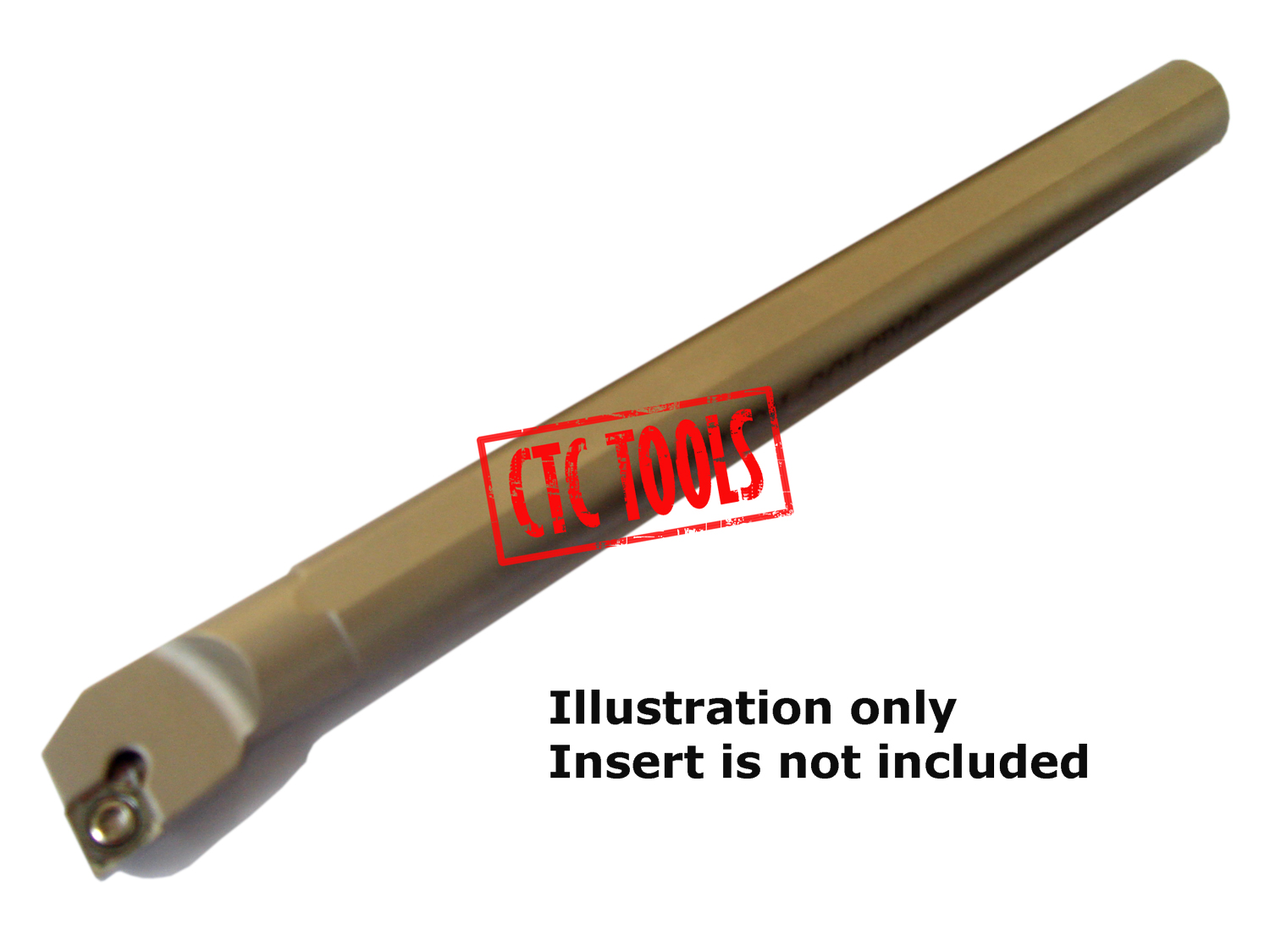

  SCLCR/L BORING BAR
...



S Type with Screw Lock Clamping System For ISO Type CC Inserts - Shank Sizes 8mm to 40mm








Model No.
Insert
Size (mm)
Screw
Wrench
Min. Start Bore
d
f

l

l1
h
a (degr.)
S08K-SCLCR/L06
CC..0602..
10
8
5
125
12
7
13
SC250744
T8
S10K-SCLCR/L06
13
10
6
125
15
9
12
S12M-SCLCR/L06
16
12
7
150
18
11
10
S16N-SCLCR/L06
20
16
9
160
24
15
8
S12M-SCLCR/L09
CC..09T3..
16
12
9
150
18
11
12
SC350760
T15
S16N-SCLCR/L09
20
16
9.5
160
24
15
10
S20Q-SCLCR/L09
25
20
11.5
180
30
18
8
SC350960
S25R-SCLCR/L09
31
25
14
200
30
23
6
S32S-SCLCR/L09
39
32
17.5
250
48
30
4
S40T-SCLCR/L09
50
40
21
300
60
37
0
S20Q-SCLCR/L12
CC..1204..
25
20
12
180
30
18
10
SC501260
T20
S25R-SCLCR/L12
32
25
14.5
200
38
23
8
S32S-SCLCR/L12
39
32
18
250
48
30
6
S40T-SCLCR/L12
50
40
22
300
60
37
4




ITEM(S)
  • 1 pc. Boring Bar
  • 1 pc. Locking Screw
  • 1 pc. Torx Wrench


  • APPLICATION
  • Approach Angle 95º
  • Boring
  • Facing
  • SCLCR/L boring bars use the two 80º corners of CC__ inserts mounted at 95º to the axis of the lathe. Their shape allows straight boring to a shoulder, as well as internal facing cuts. This is the most versatile type of boring bar, and uses the same inserts as the external SCLCR tool holders. These boring bars can generally work with overhangs of up to 5 times the boring bar diameter without the tool starting to vibrate.


  • SPECIFICATION
  • Screwdown Locking
  • Tool Holder made of High Density Forged Alloy Steel
  • Hardened to HRC40, Ground and Black Oxidated or Silver Coated depending on Size
