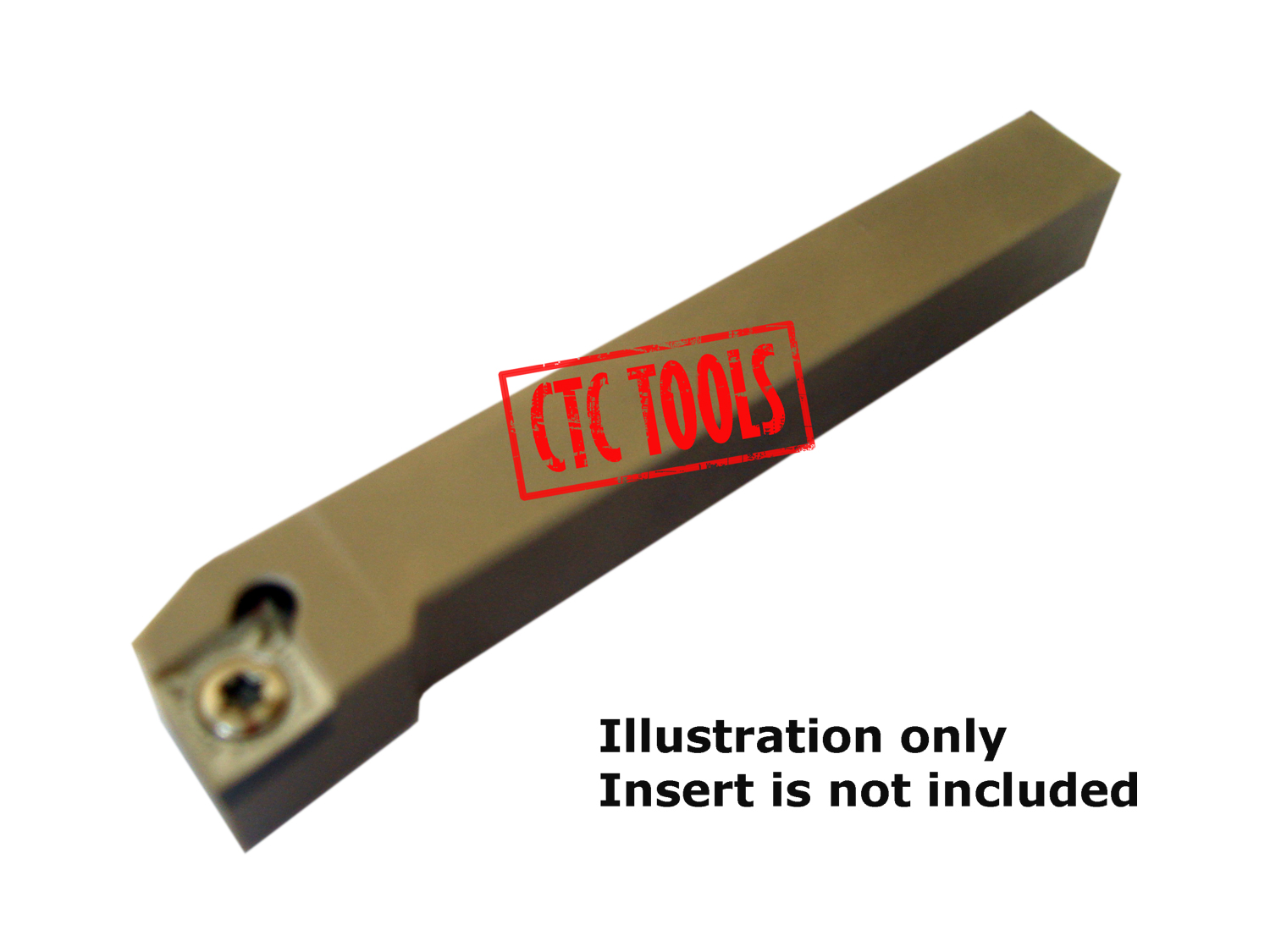

SCLCR/L INDEXABLE TURNING TOOL HOLDER #I28

  • indexable iso standard lathe turning tool holder with screw clamping for Carbide Insert
Price:
US$20.00
SKU:
I28
Brand:
Shipping:
Calculated at checkout
Quantity:


Product Description



...
  SCLCR/L EXTERNAL LATHE TOOL HOLDER
...



S Type with Screw Lock Clamping System For ISO Type CC Inserts - Shank Sizes 10mm to 32mm





Model No.
Insert
Size (mm)
Screw
Wrench
h
b
l

f

SCLCR/L0808F06
CC..0602..
8
8
80
10
SC250744
T8
SCLCR/L1010F06
10
10
80
12
SCLCR/L1212F06
12
12
80
16
SCLCR/L1616H06
16
16
100
20
SCLCR/L1212F09
CC..09T3..
12
12
80
16
SC350960
T15
SCLCR/L1616H09
16
16
100
20
SCLCR/L2020K09
20
20
125
25
SCLCR/L2525M09
25
25
150
32
SCLCR/L2020K12
CC..1204..
20
20
125
25
SC501260
T20
SCLCR/L2525M12
25
25
150
32
SCLCR/L3232P12
32
32
170
40





ITEM(S)
  • 1 pc. Tool Holder
  • 1 pc. Locking Screw
  • 1 pc. Torx Wrench


APPLICATION
  • Approach Angle 95º
  • Turning
  • Facing
  • SCLCR/L toolholders use the two 80º corners of CC__ inserts mounted at 95º to the axis of the lathe. Their shape allows straight turning to a shoulder, as well as facing cuts either to a shoulder or to the centre of a bar. This is the most versatile tool holder, and will cover most lathe jobs


SPECIFICATION
  • Screwdown Locking
  • Tool Holder made of High Density Forged Alloy Steel
  • Hardened to HRC40, Ground and Black Oxidated or Silver Coated depending on Size
