SCLCR/L INDEXABLE BORING BAR WITH 10PCS CARBIDE INSERTS #N72

  • indexable iso standard lathe turning tool holder with screw clamping boring bar with Carbide Insert CCMT
Price:
US$66.50
SKU:
N72
Brand:
Shipping:
Calculated at checkout
Quantity:


Product Description



...
  SCLCR/L BORING BAR & 10PCS CARBIDE INSERTS
...



S Type Screw Lock Clamping System with ISO Type CCMT Inserts to cut Steel, Stainless Steel, Aluminium or a Mix of the three Types
Shank Sizes from 8mm to 40mm
Tool Holder Version Available for Right Hand and for Left Hand Feed Direction








Model No.
Insert
Size (mm)
Screw
Wrench
Min. Start Bore
d
f

l

l1
h
a (degr.)
S08K-SCLCR/L06
CCMT060204
10
8
5
125
12
7
13
SC250744
T8
S10K-SCLCR/L06
13
10
6
125
15
9
12
S12M-SCLCR/L06
16
12
7
150
18
11
10
S16N-SCLCR/L06
20
16
9
160
24
15
8
S12M-SCLCR/L09
CCMT09T304
16
12
9
150
18
11
12
SC350760
T15
S16N-SCLCR/L09
20
16
9.5
160
24
15
10
S20Q-SCLCR/L09
25
20
11.5
180
30
18
8
SC350960
S25R-SCLCR/L09
31
25
14
200
30
23
6
S32S-SCLCR/L09
39
32
17.5
250
48
30
4
S40T-SCLCR/L09
50
40
21
300
60
37
0
S20Q-SCLCR/L12
CCMT120404
25
20
12
180
30
18
10
SC501260
T20
S25R-SCLCR/L12
32
25
14.5
200
38
23
8
S32S-SCLCR/L12
39
32
18
250
48
30
6
S40T-SCLCR/L12
50
40
22
300
60
37
4





ITEM(S)

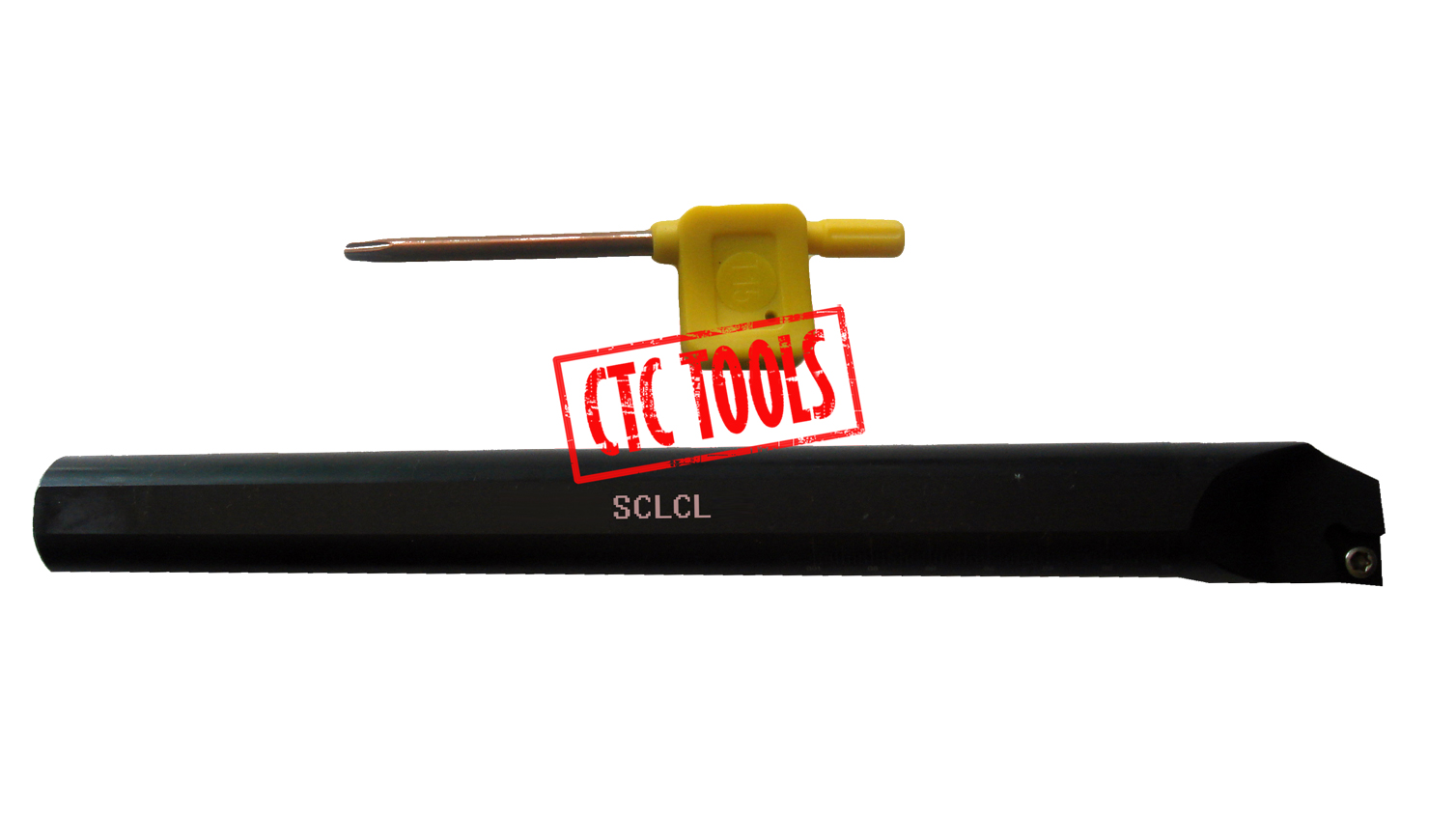

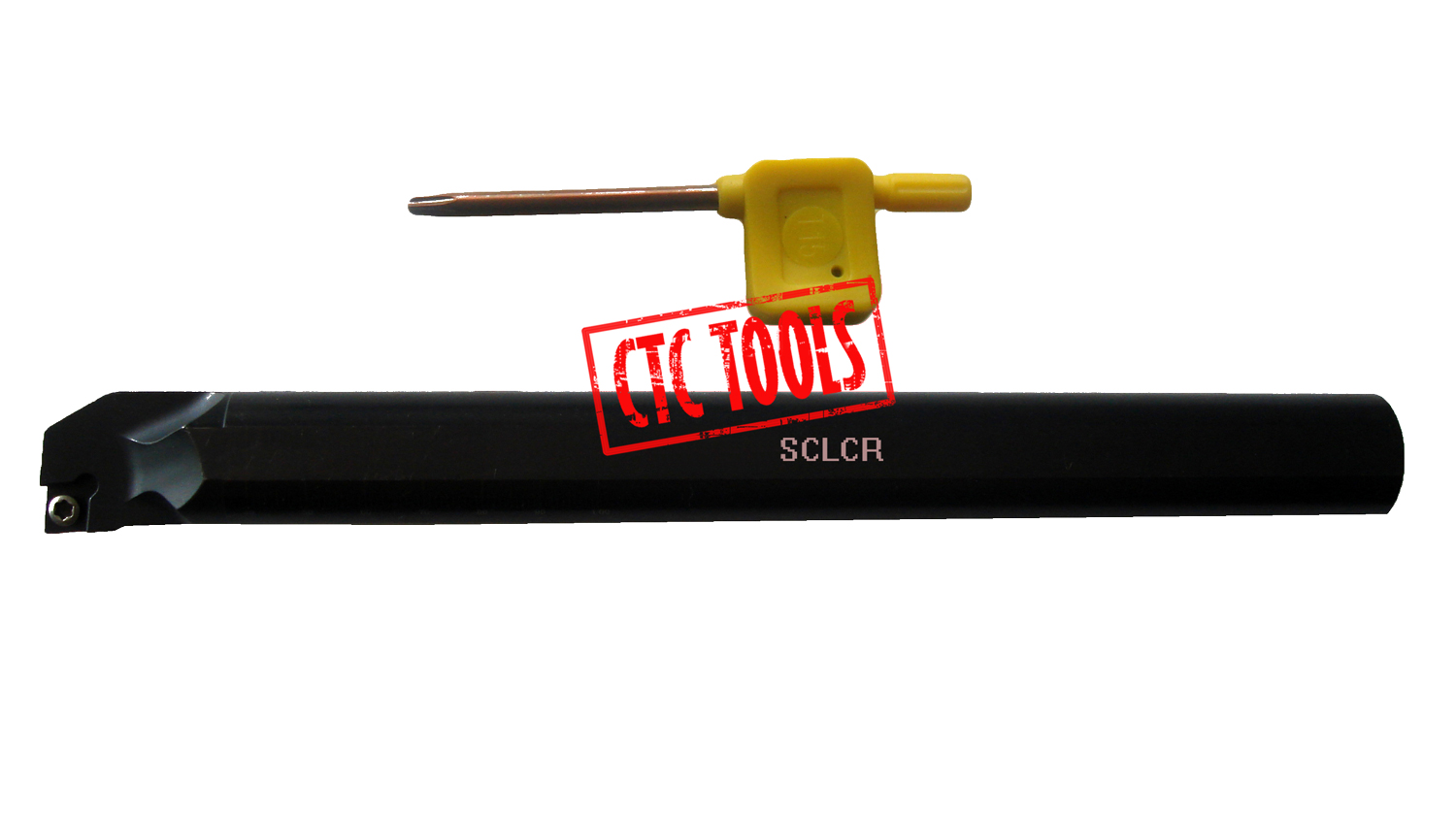

  • 1 pc. Boring Bar in Right Hand (SCLCR) or Left Hand (SCLCL) Version
  • Total of 10 pcs. Carbide Inserts for machining

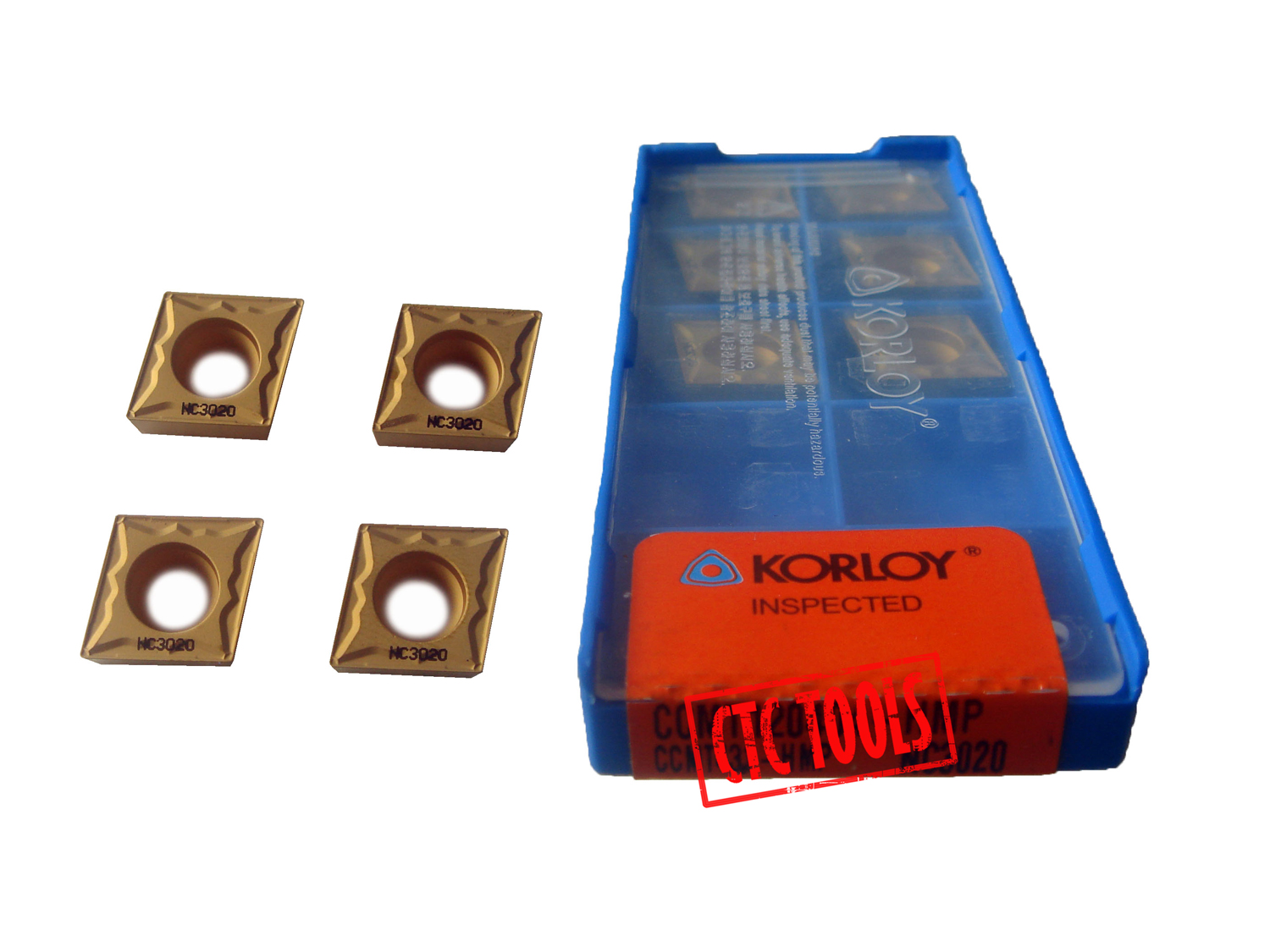

    • Steel or

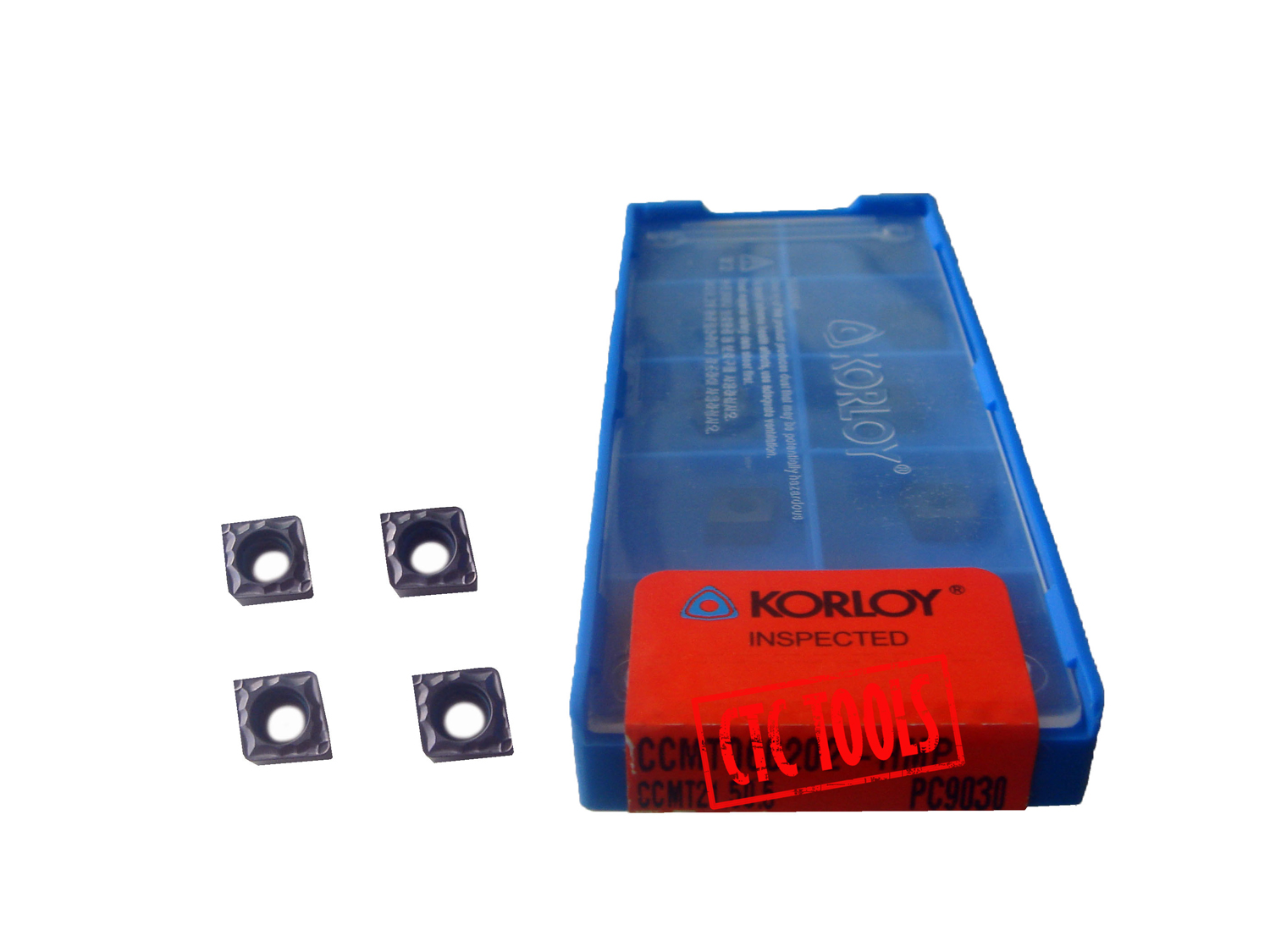

    • Stainless Steel or

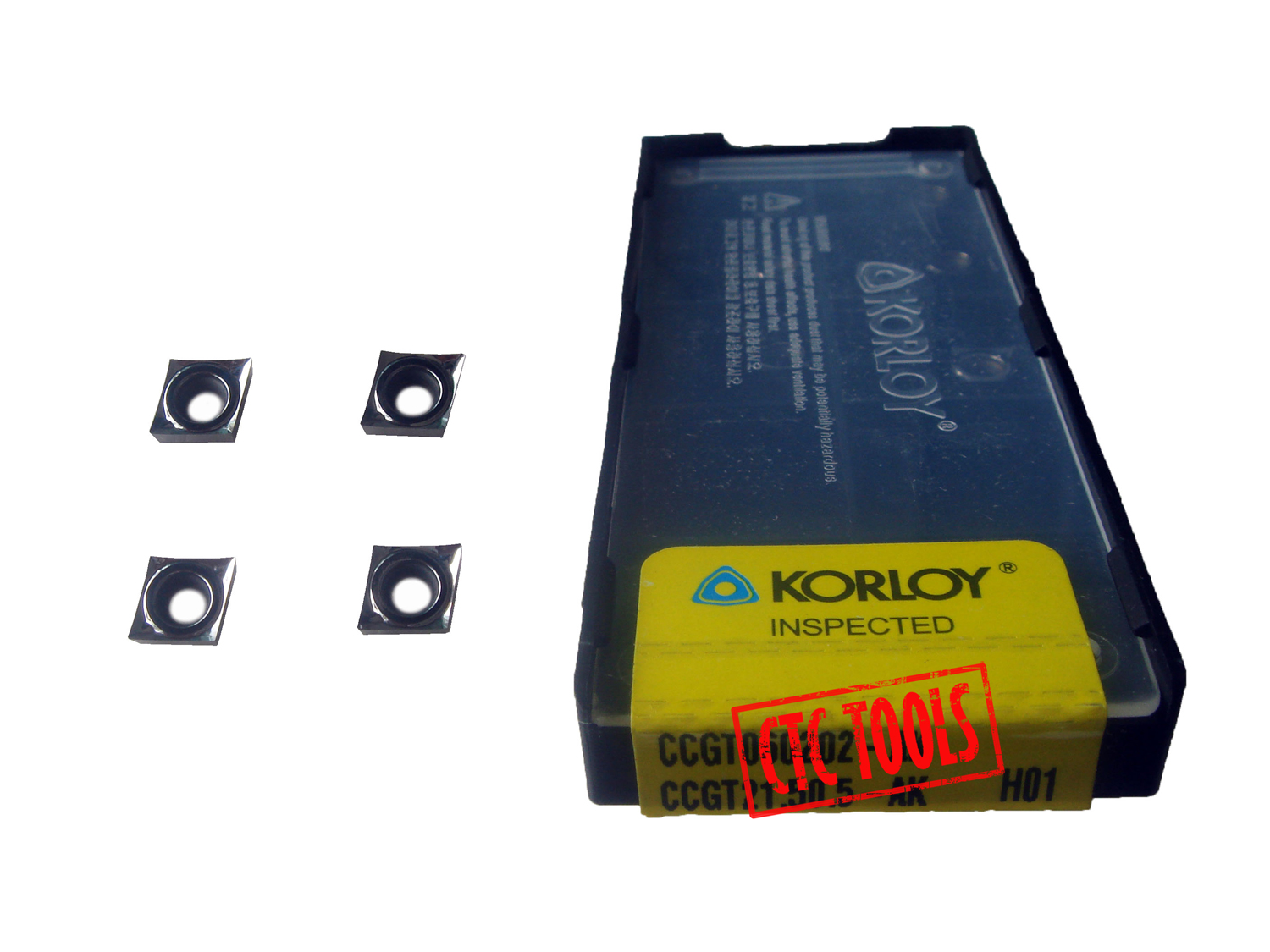

    • Aluminium (CCGT) or

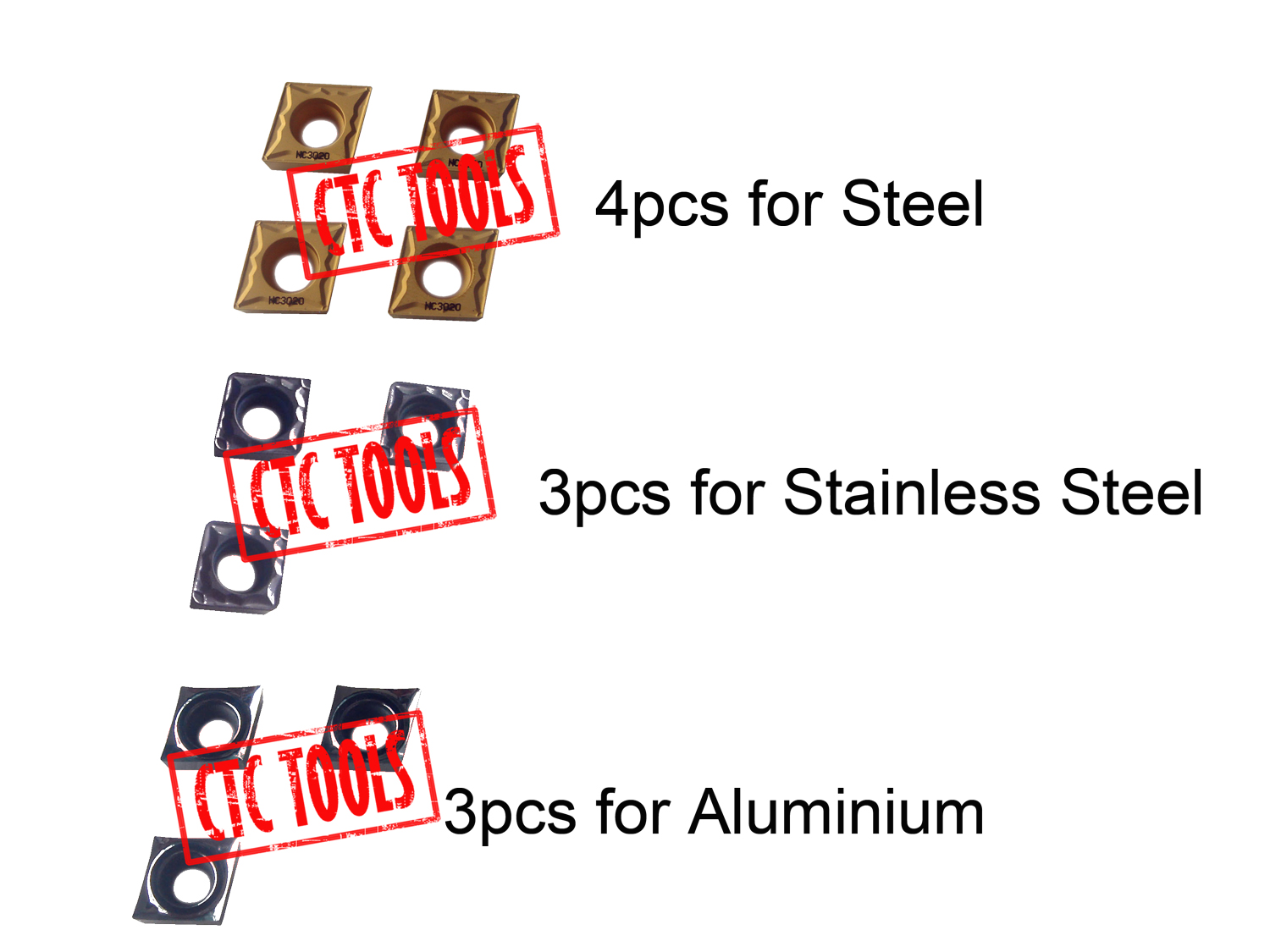

    • Starter Set of 4 pcs. for Steel, 3 pcs. for Stainless Steel and 3 pcs. for Aluminium
  • 2 pcs. Locking Screw (One for Spare)
  • 1 pc. Torx Wrench


  • APPLICATION
  • Approach Angle 95º
  • Boring
  • Facing
  • SCLCR/L boring bars use the two 80º corners of CCMT inserts mounted at 95º to the axis of the lathe. Their shape allows straight boring to a shoulder, as well as internal facing cuts. This is the most versatile type of boring bar, and uses the same inserts as the external SCLCR/L tool holders. These boring bars can generally work with overhangs of up to 5 times the boring bar diameter without the tool starting to vibrate.


  • SPECIFICATION
  • Screwdown Locking
  • Tool Holder made of High Density Forged Alloy Steel
  • Hardened to HRC40, Ground and Black Oxidated or Silver Coated depending on Size
  • Brand Name Carbide Inserts from either MITSUBISHI, KORLOY or TUNGALOY depending on our Daily Day Stock Level
